Sun Coast Cycle Sports stocks inspected used parts for the 2001-2002 Suzuki GSX-R1000, designated K1 and K2 in Suzuki's model coding. These are the original GSX-R1000, the motorcycle that redefined the open-class sportbike category by combining the compact dimensions of a 750 with 988cc performance. The K1/K2 uses a 988cc liquid-cooled DOHC 16-valve inline-four derived directly from the GSX-R750Y architecture, with a right-side cam chain, stacked gearbox, and fuel injection. Producing approximately 160 horsepower in a package weighing just 170kg dry, the K1/K2 established the template every subsequent liter-class sportbike would follow. Parts from these first-generation GSX-R1000s are sourced from donor bikes and inspected by Sun Coast's powersports team before being cataloged with individual SKUs and shipped from our Odessa, Florida warehouse.
01-02 GSXR1000 generation and parts compatibility
| Generation | Years | Displacement | Key specifications |
|---|
| K1 | 2001 | 988cc | Original GSX-R1000, gold TiN fork coating, six-piston Tokico front calipers, 16-bit ECU, magnesium covers |
| K2 | 2002 | 988cc | Identical to K1 mechanically; stainless (K2) vs titanium (K1) exhaust headers in some markets, graphics change |
| K3/K4 | 2003-2004 | 988cc | Next generation: 32-bit ECU, DLC fork coating, revised frame rigidity |
The K1 and K2 are mechanically identical and all parts interchange freely between the two model years. The only documented difference is that the K2 received stainless steel exhaust header/mid-section in some markets where the K1 used titanium, along with updated graphics. The K1/K2 shares the same 988cc displacement and basic engine architecture with the K3/K4 (2003-2004), so many engine internals (pistons, crankshaft, connecting rods, valve train) cross over to the next generation. However, the K3/K4 received a 32-bit ECU (vs 16-bit), revised throttle bodies with smaller injectors, and a different frame tune (black finish vs bare aluminum), so ECU, bodywork, and some electrical components are generation-specific.
The K1/K2 engine was derived from the GSX-R750Y (2000) platform, sharing the same basic architecture including the right-side cam chain and stacked gearbox layout. However, the 1000's bore is wider at 73mm, and the pistons, cylinder, and head are specific to the 1000. The K1/K2 does NOT share parts with the K5/K6 (2005-2006), which was a ground-up redesign with a wider bore (74.5mm), titanium valves, new frame, and radial brakes. The K1/K2's distinctive gold titanium-nitride fork coating and six-piston front brake calipers are unique identifiers for this generation.
Common 01-02 GSXR1000 failure points and replacement parts
Regulator/rectifier failure: The OEM shunt-type R/R is the most common electrical failure point on K1/K2 models. It generates excessive heat and eventually fails, causing either overcharging (battery boiling, voltage above 15V) or undercharging (dead battery, dim lights). Melted connector housings on the R/R wiring harness are a telltale sign. The same OEM part number covers 2001-2004 GSX-R1000 models. Aftermarket MOSFET replacements that run significantly cooler are the standard long-term fix.
Second and third gear engagement dogs: Hard launches and aggressive acceleration wear the engagement dogs on the second and third gear pairs, causing the transmission to jump out of gear under load. This is the most well-documented mechanical issue across all early GSX-R1000 generations. Test-ride any prospective K1/K2 with firm acceleration through the lower gears. Repair requires a full engine teardown to split the cases and replace the affected gear pairs.
Starter clutch (sprag clutch) failure: The one-way starter clutch can wear out over time, particularly on bikes with high-mileage starters or frequent cold starts. Symptoms include the starter motor spinning without engaging the engine, or a grinding/clicking noise during starting. The starter clutch is located behind the left engine cover and can be replaced without splitting the cases, though the repair requires removing the alternator rotor.
Six-piston front brake caliper maintenance: The K1/K2's Tokico six-piston front calipers are powerful when properly maintained but can develop uneven pad wear, sticky pistons, and reduced feel if not regularly serviced. The six-piston design has more seals and pistons to maintain than the four-piston radial calipers used from K5 onward. Thorough cleaning and rebuilding with fresh seals restores performance. Some owners upgrade to Brembo or aftermarket four-piston radial calipers for easier maintenance.

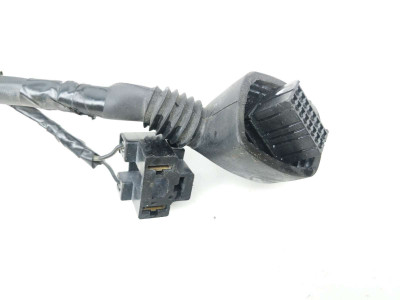

Wiring harness connector corrosion: Connectors near the right fork tube and triple clamp area are prone to corrosion, causing intermittent headlight and starter switch failures. Cleaning and applying dielectric grease to these connectors during routine maintenance prevents most issues.
Commonly replaced 01-02 GSXR1000 parts
- Regulator/rectifier (MOSFET upgrade recommended)
- Transmission gears (second and third gear pairs)
- Starter clutch (sprag clutch)
- Six-piston front brake calipers and rebuild kits
- Fork seals and stanchions (TiN coating wear)

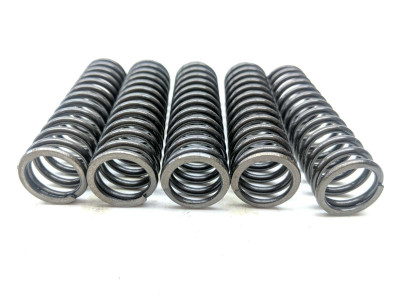

- Clutch plates and springs

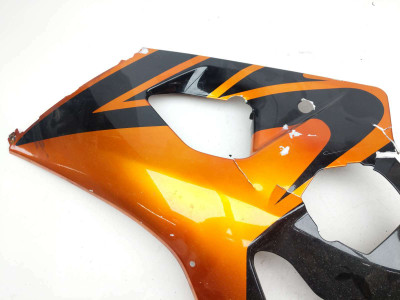

- Fairings and bodywork
- Magnesium engine covers (crack-prone in crashes)
- Wiring harness connectors
Frequently asked questions
Q: Will K3/K4 parts fit a K1/K2 GSX-R1000
Many engine internals interchange since both generations share the 988cc architecture. The K3/K4 has a different ECU (32-bit vs 16-bit), revised throttle bodies, and a frame with different rigidity tuning and a black finish rather than bare aluminum. Bodywork does not interchange due to different fairing designs. The six-piston front brake calipers are the same across K1 through K4. Always verify the K-designation when ordering parts.
Q: What is the difference between a K1 and K2 GSX-R1000
The K1 (2001) and K2 (2002) are mechanically identical. The K2 received updated graphics and, in some markets, stainless steel exhaust headers replacing the K1's titanium units. All engine, chassis, electrical, and bodywork components interchange between the two years. The tenth character of the VIN distinguishes the model year.
Q: Are the magnesium engine covers on the K1/K2 fragile
The K1/K2 uses magnesium covers for the alternator, clutch, starter, front sprocket, and cam chain areas to save weight. Magnesium is lighter than aluminum but more brittle and prone to cracking in crashes or impacts. Aftermarket aluminum replacement covers and crash protection (frame sliders, case covers) are widely available and recommended for any K1/K2 used on track or in situations where tip-overs are likely.
