Thirty-three years of production with one engine, one chassis, and exactly one meaningful mechanical change -- the LS650 Savage gained a 5th gear in 1993 and otherwise ran unchanged from 1986 to 2019. Renamed the Boulevard S40 in 2005, it is still the same air-cooled 652cc SOHC single with a belt final drive. A 1989 Savage and a 2015 S40 are the same machine in different paint; most parts interchange across the full run. Sun Coast stocks salvage parts from both Savage and S40 donors, each documented individually and shipped from Florida.
LS650 / S40 generation and parts compatibility
| Era | Years | Key differences |
|---|
| 4-speed Savage | 1986-1992 | 4-speed transmission; parts otherwise interchangeable with 5-speed era for most components |
| 5-speed Savage | 1993-2004 | 5-speed transmission added; same engine, frame, and belt drive |
| Boulevard S40 | 2005-2019 | Renamed; minor cosmetic updates, handlebar riser changes; mechanically identical to 5-speed Savage era |
The transmission change in 1993 is the only meaningful parts break on the LS650. Gearbox components from pre-1993 and post-1993 bikes are not interchangeable, but everything external to the transmission (engine cases, top end, carburetor, frame, suspension, belt drive, bodywork) crosses freely across the full 1986-2019 production run. The engine is closely related to the DR650 single -- some top-end components cross between the two, though the LS650 and DR650 are not the same engine.
Common LS650 / S40 failure points and replacement parts
Cam chain tensioner failure: The most serious documented issue on the LS650/S40, thoroughly covered at suzukisavage.com and on advrider.com forums. The OEM tensioner uses a ratchet-pawl mechanism that extends as the chain stretches; once fully extended (approximately 22mm), it can collapse and allow the cam chain to jump or break, causing catastrophic top-end damage. Community members measure the tensioner extension as a diagnostic -- failure has been reported as early as 3,000 miles on neglected examples, though most bikes see it arise past 20,000 miles. The community solution is a modified or replacement tensioner; suzukisavage.com forum moderator "Verslagen" documented a widely-used welded extension modification and aftermarket replacements that eliminate the pawl mechanism.
Lean factory jetting and deceleration backfire: The LS650 and S40 have no air cut valve or deceleration enrichment circuit, combined with EPA-mandated lean jetting. The result is consistent popping and backfire on deceleration across all years -- documented extensively on bobistheoilguy.com and advrider.com as a factory characteristic, not a fault. Rejetting the carburetor slightly richer is the standard fix; the backfire is normal behavior on a stock unmodified bike and not a sign of engine problems.
Belt drive wear and inspection: The Savage/S40 belt drive requires periodic inspection for cracking, fraying, and tension adjustment. Belt replacement intervals vary by riding conditions; the belt is a maintenance item that owners of older examples with unknown history should inspect immediately. Replacement belts are available from Suzuki and aftermarket suppliers.
Swingarm bearing wear: Higher-mileage examples develop play in the swingarm pivot bearings, causing handling vagueness. This is a documented wear item on advrider.com and parts aggregator sites covering the model. The bearings are replaceable with standard bearing tools.
Commonly replaced LS650 / S40 parts
- Cam chain tensioner (critical maintenance item)
- Carburetor and jets
- Drive belt
- Swingarm bearings and pivot hardware
- Fork seals and fork oil
- Rear shock absorbers

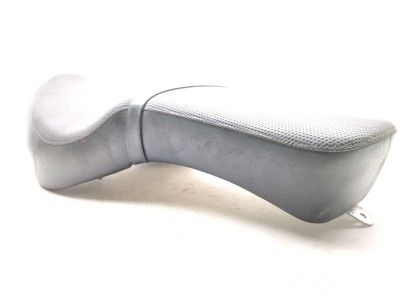

- Seat and fuel tank
- Handlebar riser assemblies
Frequently asked questions
Q: Are all LS650 Savage and Boulevard S40 parts interchangeable
For everything except the transmission, yes. The 4-speed gearbox (1986-1992) and 5-speed (1993-2019) are not internally interchangeable, but all external engine components, the carburetor, frame, bodywork, suspension, and belt drive cross freely across the full 33-year production run. The name change from Savage to S40 in 2005 was cosmetic -- the machine is mechanically identical.
Q: Does the LS650 engine share parts with the DR650
Some top-end components are similar between the LS650 and DR650 single, but they are not the same engine and parts do not cross directly. The LS650 uses a horizontal cylinder orientation versus the DR650's more upright layout; bore, stroke, and some valve train specs differ between generations. Verify specific part numbers rather than assuming compatibility.
