Harley-Davidson produced the Sportster from 1957 through 2022, making it one of the longest-running model lines in motorcycling. Three completely different engines powered the Sportster over that span: the Ironhead (1957-1985), the Evolution (1986-2022), and the Revolution Max (2021+). For used parts purposes, the Evolution-engine Sportsters (XL883 and XL1200 variants) are the most commonly sourced. Every Sportster component at Sun Coast is pulled from a donor bike at our Florida facility, individually photographed, and listed with free shipping.
Sportster generation and parts compatibility
| Generation | Years | Engine | Key differences |
|---|
| Ironhead | 1957-1985 | 883cc/1000cc OHV iron-head V-twin | 4-speed, chain drive, kick/electric start |
| Evolution (rigid-mount) | 1986-2003 | 883cc/1100cc/1200cc alloy Evolution V-twin | 4-speed (86-90), 5-speed and belt drive (91+), carbureted |

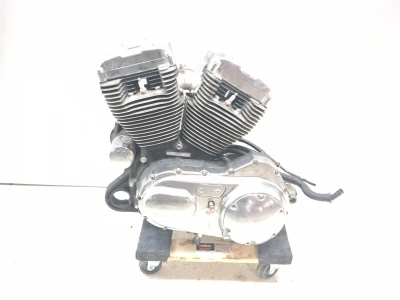

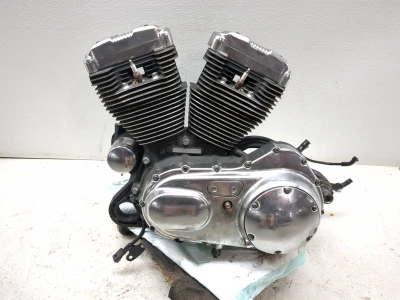

| Evolution (rubber-mount) | 2004-2022 | 883cc/1200cc Evolution V-twin | Rubber-mounted engine, new frame, fuel injection (2007+) |
| Revolution Max | 2021+ | 975cc/1252cc liquid-cooled DOHC V-twin | Completely new platform (Sportster S, Nightster) |

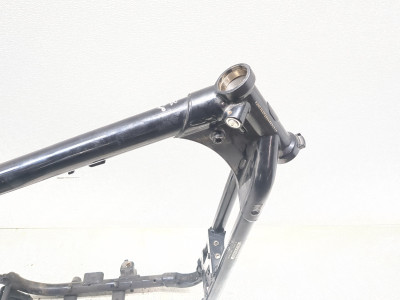

The 2004 rubber-mount redesign is the biggest parts compatibility break in the Evolution era. Frames, engine mounts, swingarms, and most electrical components do NOT interchange between pre-2004 and 2004+ models. Within 2004-2022, the 883 and 1200 share the same frame and most components, differing only in cylinder bore and piston size. Fuel injection replaced carburetors across the entire Sportster line in 2007. The 2021+ Revolution Max Sportster S and 2022+ Nightster are an entirely new liquid-cooled platform with zero parts commonality to any Evolution Sportster.
Common Sportster failure points and replacement parts
Stator/voltage regulator: The single-phase charging system on pre-2007 Sportsters is undersized for modern electrical loads. Stator burnout is common at 20,000-40,000 miles, especially on bikes with added accessories. Symptoms include a dead battery after rides and dimming lights at idle. Upgrading to a three-phase stator and MOSFET regulator is a common fix.
Starter clutch/starter drive: The starter clutch assembly (also called the starter drive or sprag clutch) wears over time on all Evolution Sportsters, causing a grinding noise during starting or failure to engage. This is a normal wear item, typically needing replacement between 30,000-60,000 miles.
Intake manifold leaks (carbureted models): The rubber intake manifold seals on 1986-2006 carbureted Sportsters harden and crack with age, causing vacuum leaks that lead to rough idle and lean running. Replacement seals are inexpensive but the symptom is often misdiagnosed as a carburetor problem.
Clutch cable and throw-out bearing: Sportster clutch cables stretch and fray, and the throw-out bearing wears, causing heavy clutch pull. The 2007+ fuel-injected models received a lighter-pull clutch design.
Front fork seal leaks: The 39mm conventional forks on most Sportsters develop seal leaks as a normal wear item, typically every 15,000-30,000 miles depending on riding conditions.
Commonly replaced Sportster parts
- Stator and voltage regulator
- Starter clutch assembly
- Intake manifold seals
- Clutch cable and plates
- Front fork seals and tubes
- Exhaust pipes and heat shields
- Seats and passenger pegs
- Fuel tank (peanut and 3.3-gallon variants)
Frequently asked questions
Q: Will pre-2004 Sportster parts fit a 2004 or newer model?
No. The 2004 redesign introduced a rubber-mounted engine in a completely new frame. Bodywork, electrical, engine mounts, and frame components are not interchangeable between the rigid-mount (1986-2003) and rubber-mount (2004+) generations.
Q: Can you convert an 883 Sportster to 1200?
Yes. Harley sold an official 883-to-1200 conversion kit (larger cylinders and pistons). Many used 1200 cylinder kits come from bikes that were converted back or parted out. The 883 and 1200 share the same crankcase and bottom end within the same generation.
Q: Do Evolution Sportster engines share parts with Big Twin Evolution engines?
No. The Sportster Evolution and the Big Twin Evolution (used in Softail/Dyna/Touring from 1984-1999) are completely different engines. They share a general design philosophy but no physical components interchange between them.
