Used parts for the 2002-2003 Yamaha YZF-R1 are available at Sun Coast Cycle Sports. The 2002 R1 was a major revision introducing fuel injection, a stiffer and lighter Delta Box III chassis, and refined styling. The hybrid fuel injection system combined conventional CV carb slides for air management with fuel injectors for fuel delivery, producing smoother throttle response than the pure-carb predecessors. Still using the five-valve-per-cylinder head, the 2002-2003 R1 bridged the gap between the raw original and the radical 2004 redesign. Our Odessa, Florida technicians strip each 02-03 R1 donor, photograph every component under a unique SKU, and list it with free shipping throughout the lower 48.
02-03 YZF-R1 generation and parts compatibility
| Years | Engine | Power | Key Changes |
|---|
| 2002-2003 | 998cc inline-4, DOHC, 5-valve/cyl, hybrid FI | 152 hp (crank) | Hybrid fuel injection; Delta Box III frame; LED taillight; detachable subframe |
The 2002-2003 R1 uses a unique hybrid fuel injection system that is specific to this generation only. The 1998-2001 models are carbureted, and the 2004+ models use conventional fuel injection. The hybrid system's fuel injectors, airbox, and ECU do NOT interchange with any other R1 generation.
Engine internals (pistons, connecting rods, crankshaft, cams) are specific to the 2002-2003 generation. While the five-valve head design continues from 1998-2001, the combustion chamber, port geometry, and compression were revised. The Delta Box III frame is a 30% stiffer redesign that does not interchange with the Delta Box II (1998-2001) or Delta Box V (2004-2006).
Body panels interchange between 2002 and 2003. The 2003 model added hazard warning lights and always-on low-beam headlights but is otherwise mechanically identical to the 2002.
Common 02-03 YZF-R1 failure points and replacement parts
Gearbox engagement (improved but not eliminated): The 2002-2003 R1 improved the gearbox over the 1998-2001, but first/second gear engagement issues can still occur with aggressive shifting at high RPM. The gearbox is stronger than the earlier generation but not bulletproof.
Hybrid fuel injection throttle response: The hybrid FI system provides smoother response than carbs but can develop issues with the injector/slide interaction. Throttle position sensor calibration and injector cleaning maintain smooth operation.
EXUP valve seizure: Same EXUP valve concern as the 1998-2001 models. Regular exercise of the EXUP system and cable lubrication prevents seizure.
Regulator/rectifier: Same R/R overheating vulnerability as earlier R1 models. Aftermarket upgraded units are recommended.
Stator failure: The stator can fail at higher mileage, causing charging system loss. Stator replacement is a common repair on sportbikes of this era. Symptoms include dimming lights, weak starting, and eventually a dead battery that will not maintain charge. Aftermarket stators with heavier-gauge windings offer improved longevity over the OEM unit.
Commonly replaced 02-03 R1 parts
- Stator and regulator/rectifier
- EXUP valve and cable
- Throttle position sensor
- Fairing panels (crash damage)
- Fork seals
- Chain and sprocket set
- Brake pads and rotors
- Clutch plates
- Coolant hoses
Frequently asked questions
Q: Will 1998-2001 or 2004-2006 R1 parts fit my 2002-2003?
No, for most components. The 2002-2003 R1 uses a unique hybrid fuel injection system, Delta Box III frame, and generation-specific bodywork. Engine internals differ from both the carbureted 1998-2001 and the fully fuel-injected 2004-2006. Some universal items (brake pads, chain, sprockets) may fit across generations, but model-specific parts are generation-specific.
Q: What is the hybrid fuel injection system?

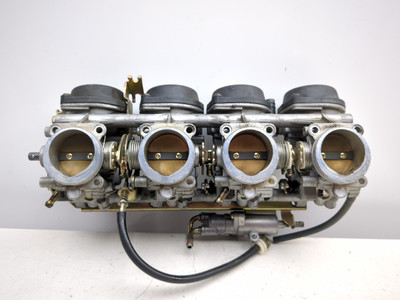

The 2002-2003 R1 uses CV-type carburetor slides to manage airflow combined with fuel injectors for fuel delivery. This hybrid approach provides the smooth throttle modulation of carburetors with the precision fueling of injection. It is unique to this R1 generation; the 2004+ models use a conventional throttle-body fuel injection system without carb slides.
Q: Is the 2002-2003 R1 a good track bike?
The 2002-2003 R1 is a capable track machine with smooth power delivery and a stiff, well-balanced chassis. It lacks the electronic rider aids (traction control, ABS, ride modes) of later generations, which some track riders prefer for unfiltered feedback. The 30% stiffer Delta Box III frame improved handling precision over the 1998-2001 models. For pure track use, the lack of electronics means the rider must manage traction through skill alone.
