Sun Coast Cycle Sports offers inspected used parts for the Honda Shadow ACE 750 (VT750C/VT750CD), produced from 1997 through 2003. The ACE designation stands for American Classic Edition, reflecting Honda's push into retro-styled middleweight cruisers. Powered by a 745cc liquid-cooled 52-degree SOHC V-twin with a five-speed transmission and chain final drive, the ACE 750 introduced a new engine platform (RC44E) derived from the VT600 VLX's architecture but with a wider bore and longer stroke. Each ACE 750 part we stock is visually inspected, documented with individual photos, and ships from our facility in Odessa, Florida.
Shadow ACE 750 generation and parts compatibility
| Variant | Years | Engine | Key differences |
|---|
| VT750C Standard | 1997-2001 | 745cc RC44E, dual 36mm CV carbs | 3.1-gallon tank, handlebar-mounted speedo (1997-2000 US), tank-mounted speedo (2001 US), full fenders, wire wheels |
| VT750CD Deluxe | 1998-2003 | 745cc RC44E, dual 36mm CV carbs | 4.4-gallon tank, additional chrome trim, two-tone paint options, chrome fender tips |
The RC44E engine is identical between the Standard and Deluxe models. All engine internals, transmission components, clutch, and chain drive parts interchange freely between any VT750C and VT750CD from 1997-2003. The primary differences are cosmetic: the Deluxe gets a larger fuel tank, more chrome, and different paint schemes. Frames, swingarms, suspension components, and brakes are shared across both variants.
The ACE 750 also shares its RC44E engine with the VT750DC Shadow Spirit (2001-2003, 2005-2007), though the Spirit uses a different frame, different bodywork, and slightly different gearing via a different rear sprocket. Engine, transmission, and clutch internals cross over between the ACE and the chain-drive Spirit. The ACE 750 does NOT share parts with the later VT750C Aero (2004-2016), which uses a revised RC50E engine, shaft final drive, and a completely different frame. The transition from chain drive (ACE) to shaft drive (Aero) is the major compatibility break in the VT750 lineage. The ACE engine originated from the VT600 VLX's 52-degree architecture but was bored and stroked to 745cc with SOHC three-valve dual-plug heads.
Common Shadow ACE 750 failure points and replacement parts
Carburetor fouling from storage: The ACE 750's dual 36mm CV carburetors are sensitive to fuel degradation. Bikes that sit without fuel stabilizer commonly develop clogged pilot jets and sticky float valves. Thorough carburetor cleaning or a rebuild kit is often the first repair needed on a used ACE 750.
Stator connector overheating: The three-yellow-wire connector from the stator to the regulator/rectifier is a known weak point across the Shadow 750 family. Heat buildup at this connector can melt the plastic housing and cause intermittent charging failures. Upgrading to a direct-solder connection or a heavy-duty connector is a common preventive repair.
Starter relay failure: ACE 750s that sit for extended periods frequently develop starter relay issues. The symptom is a single click when the start button is pressed, with no cranking. The relay is an inexpensive part located near the battery.
Vacuum leak at intake boots: The rubber carburetor boots between the carburetors and the cylinder heads harden and crack over time. A vacuum leak causes rough idle, poor throttle response, and difficulty maintaining consistent engine speed. Replacing the boots restores proper carburetor synchronization.
Commonly replaced Shadow ACE 750 parts

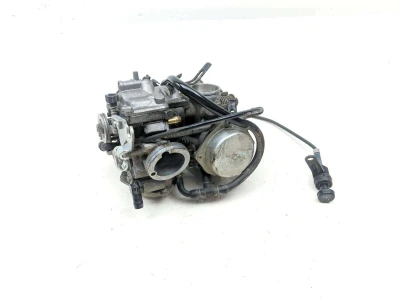

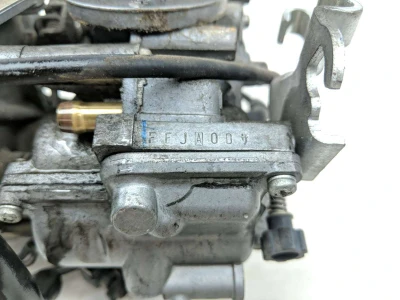

- Carburetors and carburetor rebuild kits
- Stator, regulator/rectifier, and stator connector
- Starter relay
- Intake boots and carburetor insulators
- Chain and sprocket kit
- Exhaust system and muffler
- Fuel tank (Standard 3.1-gal or Deluxe 4.4-gal)
- Seats and passenger backrests
- Fenders and side covers
Frequently asked questions
Q: Will Shadow ACE 750 engine parts fit a VT750DC Spirit
Yes. The 2001-2003 and 2005-2007 VT750DC Shadow Spirit uses the same RC44E engine as the ACE 750. Engine internals, transmission gears, clutch plates, and the chain drive system are compatible. The Spirit has different gearing via a different rear sprocket, but the engine and transmission are mechanically identical. Bodywork, frame, and suspension components are NOT shared between the ACE and Spirit.
Q: Can I use parts from a 2004+ Shadow Aero on my ACE 750
Generally no. The 2004+ Shadow Aero (VT750C) uses a revised RC50E engine with higher compression, a different frame, and shaft final drive instead of chain. While both engines are 745cc 52-degree V-twins, the internal changes and different final drive make most components incompatible. Some electrical accessories and controls may cross over, but engine, transmission, and chassis parts do not.
Q: What is the difference between the VT750C Standard and VT750CD Deluxe
The differences are purely cosmetic and fuel capacity. The Deluxe has a larger 4.4-gallon fuel tank versus the Standard's 3.1-gallon tank, additional chrome accents, chrome fender tips, and two-tone paint options. All engine, transmission, brake, suspension, and frame components are identical. The larger Deluxe tank will physically fit a Standard frame, making it a popular upgrade.
Inspected by Powersports Technicians • Only One in Stock • Ships Fast from Florida
