This category covers used parts for Harley-Davidson Dyna FX 96ci models built from 2007 through 2011. The 96ci designation refers to the Twin Cam 96 engine, a 1584cc air-cooled V-twin paired with the 6-speed Cruise Drive transmission that became standard in 2006. Sun Coast Cycle Sports stocks frames, engines, transmissions, electrical components, bodywork, and trim pieces for the full range of 96ci Dyna variants including the FXDB Street Bob, FXDL Low Rider, FXDC Super Glide Custom, FXDF Fat Bob, FXDWG Wide Glide, and FXD Super Glide. All parts are pulled from donor machines, inspected by our technicians, and cataloged with individual photos and SKU numbers before listing.
Dyna FX 96ci generation and parts compatibility
| Period | Years | Engine | Key differences |
|---|
| Early 96ci | 2007-2009 | 1584cc Twin Cam 96 | 6-speed Cruise Drive, EFI, 49mm front forks on most models |
| Late 96ci | 2010-2011 | 1584cc Twin Cam 96 | Updated instrumentation on select models, ABS available |
The 2007-2011 Dyna FX 96ci generation is highly consistent in terms of parts compatibility. All models share the same Twin Cam 96 engine, 6-speed Cruise Drive transmission, rubber-mounted Dyna chassis, and electronic fuel injection system. Frame geometry, engine mounting points, and swingarm dimensions are identical across all FXD-prefix models in this range. Chassis parts, engine internals, transmission components, and primary drive assemblies interchange freely between any 2007-2011 96ci Dyna.
The main differences between models are trim-specific: the FXDF Fat Bob uses a wider front end with dual headlights and a 180mm rear tire, the FXDWG Wide Glide runs a 21-inch front wheel and wide-set fork tubes, and the FXDB Street Bob is stripped down with a solo seat and mid-mount controls. These styling-specific parts (fenders, handlebars, headlight assemblies, exhaust routing, and seats) do not cross over between trim variants, but everything from the engine down to the swingarm pivot is shared.
The 96ci Dyna shares its engine architecture with 2007-2011 Softail models, but the same rubber-mount versus rigid-mount distinction applies. Internal rotating components like the crankshaft, pistons, and cylinders are dimensionally the same, while cam chest configuration, engine mounting brackets, and oil system routing differ between the Dyna and Softail platforms.
Common Dyna FX 96ci failure points and replacement parts
Cam chain tensioner shoes (2007-2011): While Harley-Davidson improved the tensioner design from the earlier Twin Cam 88, the Twin Cam 96 still uses hydraulic tensioners with wear-prone shoes. Failure typically occurs later in the engine's life compared to the TC88, but the same failure mode applies. Debris from disintegrating shoes contaminates the oil system and can damage the inner cam bearing. Inspection or preventive replacement around 40,000-60,000 miles is commonly recommended.
Compensator sprocket (all years): The primary drive compensator continues to be a known weak point in Twin Cam Dyna models. Symptoms include a loud clunk when the starter engages or when shifting from neutral into first gear at idle. High-mileage units may develop a rattle at low RPM as the compensator spring loses tension.
Stator and voltage regulator (2007-2011): The charging system on 96ci Dynas can develop stator failures, particularly on bikes that spend significant time idling or in slow-moving traffic. A failing stator produces low voltage output and can overheat the voltage regulator. Symptoms include dim headlights, a dead battery after short rides, and difficulty starting.
Rear wheel bearing (2008+ Fat Bob): The FXDF Fat Bob runs a wider 180mm rear tire on a unique rear wheel, and the rear wheel bearings on these models see higher lateral loads than standard-width Dyna setups. Bearing wear manifests as a humming or growling noise from the rear at highway speed.
Front fork seal leaks (all models): The 49mm conventional front forks used across the 96ci Dyna lineup are prone to seal leepage with age, particularly if the fork tubes develop surface pitting from road debris. Leaking fork seals allow oil to migrate onto the front brake rotor, reducing braking effectiveness.
Commonly replaced Dyna FX 96ci parts
- Cam chain tensioners and cam bearings
- Compensator sprocket and primary chain assembly
- Stator, voltage regulator, and rotor
- Front fork seals, tubes, and lower legs
- Clutch plates, spring, and basket

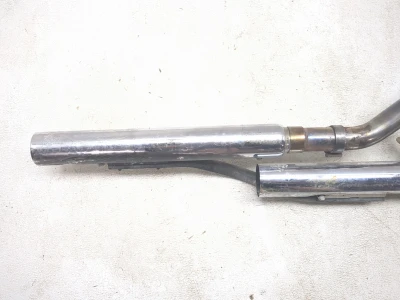

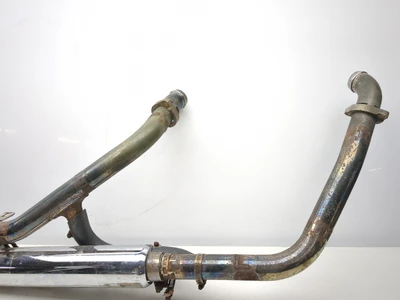

- Exhaust systems and mufflers
- Handlebars, risers, and mirrors
- Forward or mid-mount controls
- Seats, fenders, and side covers
- Wheel bearings and brake rotors
Frequently asked questions
Q: Will 2007-2011 Dyna FX 96ci parts fit a 2012 Dyna 103ci
The Dyna chassis carried over from the 96ci to the 103ci era with minimal changes. Frame, swingarm, suspension mounting points, and wheel sizes are the same. The primary difference is the engine displacement (1584cc versus 1690cc), so engine-specific components like cylinders, pistons, and heads are not interchangeable. Transmission, primary drive, clutch, chassis hardware, brakes, controls, and electrical components generally cross over between the 96ci and 103ci Dyna generations.
Q: Can I swap a Fat Bob wide rear end onto a Street Bob or Low Rider
The FXDF Fat Bob uses a unique swingarm, rear fender, and wheel assembly designed for the 180mm rear tire. Standard Dyna models (Street Bob, Low Rider, Super Glide) use a narrower swingarm and 160mm or 150mm rear tire. A Fat Bob rear end conversion requires the complete swingarm, axle, fender, belt guard, and rear wheel assembly from the FXDF, plus possible wiring adjustments for the tail light configuration.
Q: Are FXDWG Wide Glide front forks interchangeable with other Dyna models
The FXDWG Wide Glide uses a wider triple-tree assembly to accommodate its wider-set fork tubes and 21-inch front wheel. Standard Dyna models use a narrower triple-tree with more conventional fork spacing. The fork tubes themselves are the same 49mm diameter, but the triple trees, front fender, and front wheel are all Wide Glide-specific. Swapping requires the complete front end assembly including the triple trees.
