Sun Coast Cycle Sports carries inspected used parts for the 2009-2016 Suzuki GSX-R1000, covering model codes K9 through L6. This third-generation GSX-R1000 was a comprehensive redesign for 2009, featuring a shorter-stroke 999cc inline-four with the engine length reduced by 60mm, Showa Big Piston Front (BPF) forks, a 32mm longer swingarm paired with a 59mm shorter wheelbase, and Tokico monoblock four-piston brake calipers. With a claimed 182 horsepower and no electronic rider aids beyond the three-mode SDMS power selector, the K9-L6 generation represents the last fully analog GSX-R1000. The 2012-2016 (L2-L6) models received Brembo monoblock calipers and traction control. Every component in our inventory is inspected by Sun Coast's powersports technicians, individually photographed, and ships from Odessa, Florida.
09-16 GSXR1000 generation and parts compatibility
| Sub-generation | Years | Model codes | Key specifications |
|---|
| Early | 2009-2011 | K9, L0, L1 | Showa BPF forks, Tokico monoblock calipers, SDMS 3-mode, no traction control |
| Late | 2012-2016 | L2-L6 | Brembo monoblock calipers, traction control added, revised ECU mapping |

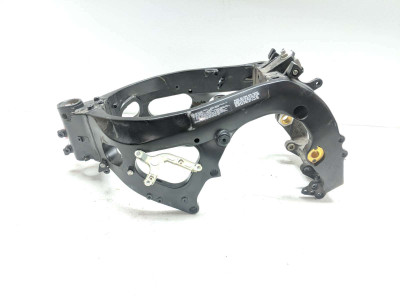

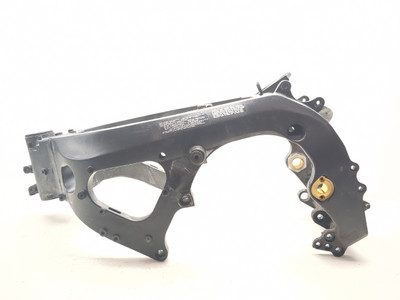

The 2009-2011 and 2012-2016 sub-generations share the same frame, engine, and most chassis components. The primary differences are the front brake calipers (Tokico on K9-L1, Brembo on L2+), the addition of a basic traction control system from 2012, and revised ECU calibration. Bodywork is interchangeable across all 2009-2016 models. The engine uses the same 74.5mm bore and 59mm stroke throughout, so all engine internals cross between any year in this range.
The K9-L6 shares NO significant parts with the K7/K8 (2007-2008) it replaced. The K7/K8 used twin underseat exhausts and a hydraulic clutch, both of which were eliminated for the K9. The K9 returned to a cable clutch and conventional single-sided exhaust routing. Frame, bodywork, exhaust, ECU, and subframe are all incompatible between the K7/K8 and K9+ generations. Similarly, the 2017+ GSX-R1000 (L7+) is a complete redesign with variable valve timing, ride-by-wire, an IMU-based electronics suite, and LED lighting, sharing no bodywork or electronics with the K9-L6.
Common 09-16 GSXR1000 failure points and replacement parts
Front brake master cylinder (NHTSA Campaign 13V449): The 2009-2013 models are covered by the GSX-R brake master cylinder recall affecting 210,228 units. Brake piston corrosion combined with aged fluid can create gas buildup, gradually reducing front brake pressure. Suzuki replaced the master cylinder with a redesigned unit featuring a top-mounted reservoir port. The 2014-2016 models shipped with the corrected design. A visual check confirms recall completion: the reservoir hose should exit from the top of the master cylinder rather than the side.
Regulator/rectifier: While improved over earlier GSX-R generations, the K9-L6 R/R can still fail, causing charging system issues. Symptoms include intermittent battery drain, dim lights at idle, and voltage readings outside the 13.5-14.5V range at operating RPM. MOSFET aftermarket replacements remain the recommended upgrade for long-term reliability.
Tokico front brake caliper piston sticking (2009-2011): The Tokico monoblock calipers on K9-L1 models can develop sticky pistons if brake fluid is not changed at the recommended two-year interval. Sticky pistons cause uneven pad wear and reduced braking feel. A thorough rebuild with fresh seals and fluid resolves this. The 2012+ switch to Brembo monoblock calipers improved this situation.
Exhaust valve servo motor (SET valve): The SET valve servo can fail or stick, triggering an FI warning light. This carries over from earlier GSX-R generations and is more of a nuisance than a safety concern. Block-off kits are a common aftermarket solution.
Fuel pump relay: Some K9-L1 owners report intermittent fuel pump relay failures, causing the fuel pump to not prime on startup. The relay is located under the tail section near the battery. Replacement is inexpensive and straightforward.
Commonly replaced 09-16 GSXR1000 parts
- Front brake master cylinder (recall-related, 2009-2013)
- Regulator/rectifier
- Front brake calipers and rebuild kits
- SET valve servo motor or eliminator kit
- Fuel pump relay
- Fairings and bodywork (crash and track damage)

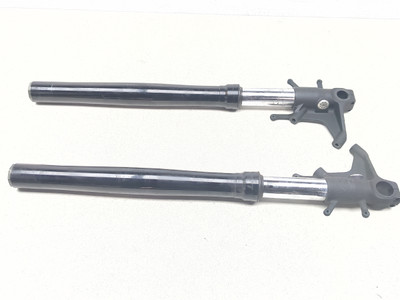

- Fork seals and Showa BPF cartridges
- Chain and sprocket set
- Clutch plates and cable
Frequently asked questions
Q: Will 2009-2011 parts fit a 2012-2016 GSX-R1000
Yes for most components. The engine, frame, bodywork, exhaust, and most chassis parts are shared across all 2009-2016 models. The main differences are the front brake calipers (Tokico on 2009-2011, Brembo on 2012+) and the addition of traction control from 2012. The ECU differs between the two sub-generations due to the traction control programming. Swapping a 2009-2011 ECU into a 2012+ bike will lose traction control functionality.
Q: Can K7/K8 or L7+ (2017+) parts be used on a K9-L6
No. The K7/K8 used twin underseat exhausts, a hydraulic clutch, and different bodywork. The L7+ (2017+) features variable valve timing, ride-by-wire, an IMU, and LED lighting on a new chassis. Each of these three generations (K7/K8, K9-L6, L7+) is a distinct platform with essentially no parts crossover in bodywork, electronics, or exhaust.
Q: Does the 2009-2016 GSX-R1000 have traction control
Only the 2012-2016 (L2-L6) models have traction control. The 2009-2011 (K9-L1) models have no electronic rider aids beyond the three-mode SDMS power selector, which adjusts throttle response mapping but does not control wheel spin. The 2012+ traction control is a basic system without an IMU. The fully featured Motion Track TCS with six-axis IMU was not introduced until the 2017 redesign.
