Sun Coast Cycle Sports stocks inspected used parts for the 1999-2002 Suzuki SV650, the first generation of Suzuki's massively popular middleweight V-twin. The Gen 1 SV650 uses a 645cc liquid-cooled 90-degree V-twin with DOHC and carburetors (Mikuni BSR34 CV), mounted in a steel trellis frame. Producing approximately 70 horsepower with a torque-rich power delivery, the Gen 1 SV650 became one of the most popular motorcycles for new riders, track day enthusiasts, and commuters alike. Available as the naked SV650 and half-faired SV650S, the Gen 1 is distinguishable from the Gen 2 by its round headlight, trellis frame, and carbureted engine. Each Gen 1 SV650 part at Sun Coast is inspected by our technicians, assigned a unique SKU with photos, and ships from Odessa, Florida.
99-02 SV650 generation and parts compatibility
| Generation | Years | Engine | Key specifications |
|---|
| Gen 1 | 1999-2002 | 645cc 90-degree V-twin | Carbureted, trellis frame, round headlight (naked), conventional forks |
| Gen 2 | 2003-2009 | 645cc 90-degree V-twin | Fuel injected, aluminum twin-spar frame, angular styling |
| Gen 3 | 2017+ | 645cc 90-degree V-twin | Completely new platform, trellis frame return, new FI system |
Within the Gen 1 (1999-2002), all parts interchange freely across model years with minor running changes. The 2002 model received a slightly improved charging system over the 1999-2001 models, but the engine, frame, and bodywork are consistent. The naked SV650 and faired SV650S share the same engine, frame, wheels, suspension, and most chassis components. Only the fairing, headlight assembly, handlebars, and associated brackets differ between the two variants.

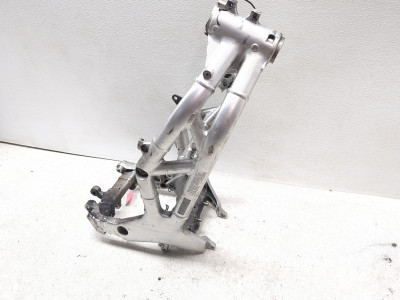

The Gen 1 does NOT share parts with the Gen 2 (2003-2009). The Gen 2 switched from a steel trellis frame to an aluminum twin-spar frame, from carburetors to fuel injection, and introduced completely new bodywork. Engine internals may share some specifications between Gen 1 and Gen 2 since the 645cc V-twin architecture is similar, but external engine components (carbs vs FI, different airbox, different exhaust routing) and frame mounting points are generation-specific. The Gen 3 SV650 (2017+) is a third distinct platform with no significant parts crossover to the Gen 1.
Common 99-02 SV650 failure points and replacement parts

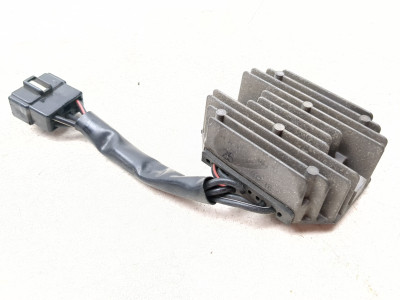

Regulator/rectifier failure (faulty by design): The Gen 1 SV650's stock R/R is widely regarded as one of the worst in Suzuki's lineup. The OEM unit frequently fails, causing overcharging that can fry the battery and CDI unit, or undercharging that leaves you stranded. The 1999-2001 models are most susceptible, with the 2002 receiving a slightly improved design. Replacing the stock R/R with a MOSFET unit (such as a Shindengen FH008 from a Honda CBR or a MOSFET unit from a later GSX-R) is considered essential preventive maintenance on any Gen 1 SV650. Wrapping the R/R output connector in electrical tape to prevent moisture intrusion is also a well-documented preventive measure.
Front spark plug drowning in rain: Rain and road spray can fling water up onto the front cylinder head, flow through venting holes in the plug cap, fill the spark plug well, and short out the front plug's spark. This causes the bike to drop to single-cylinder operation at speed, which is extremely dangerous. The Gen 2 addressed this with a stock deflector under the radiator. Gen 1 owners should install an aftermarket splash guard or modify the lower fairing stay to deflect water away from the front plug well.
Carburetor synchronization and idle issues: The Mikuni BSR34 CV carburetors require periodic synchronization for smooth idle. Improperly synced carbs cause rough or hunting idle and inconsistent throttle response. The Gen 1 can also develop cold-start difficulties as the carb diaphragms age. A thorough carb clean and sync is standard maintenance for any used Gen 1 SV650.

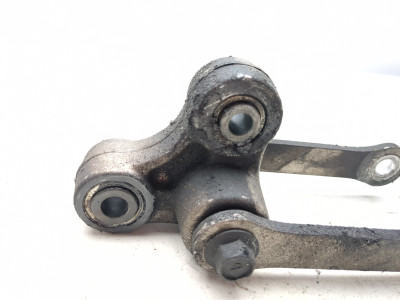

Rear suspension inadequacy: The stock rear shock is adequate for light commuting but fades quickly under spirited riding or with a pillion. Aftermarket rear shocks from Ohlins, YSS, or similar brands are among the most impactful single upgrades for any SV650.
Starter clutch wear: High-mileage Gen 1s can develop starter clutch issues, with the starter motor spinning without engaging. The repair requires access to the starter clutch assembly behind the alternator rotor.
Commonly replaced 99-02 SV650 parts
- Regulator/rectifier (MOSFET upgrade essential)
- Stator
- Carburetor rebuild kits and diaphragms
- Rear shock absorber
- Front spark plug rain guard (aftermarket)
- Starter clutch
- Fork seals
- Chain and sprocket set
- Clutch cable and plates
Frequently asked questions
Q: Will Gen 2 (2003-2009) SV650 parts fit a Gen 1 (1999-2002)

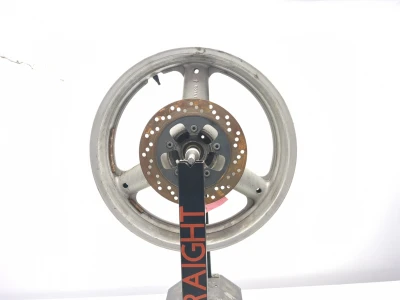

No for most components. The Gen 2 switched to an aluminum twin-spar frame, fuel injection, and completely new bodywork. The engines share the same 645cc V-twin architecture and some internal specifications may overlap, but external engine components, frame mounting, and electrical systems are generation-specific. Wheels may interchange depending on specific year and brake caliper compatibility, but this should be verified before ordering.
Q: Is the Gen 1 SV650 R/R failure really that common
Yes. The stock Gen 1 R/R is described by the SV community as "faulty by design." Failures at around 30,000 miles are common, with some occurring earlier. The failure can be sudden, leaving you stranded, or gradual, slowly degrading battery health. Replacing the stock R/R with a MOSFET unit from a Honda CBR or late-model GSX-R is considered the single most important preventive maintenance item on any Gen 1 SV650. Some owners perform this upgrade immediately upon purchase regardless of mileage.
Q: Do the naked SV650 and faired SV650S share parts
Yes for almost everything. The engine, frame, wheels, brakes, suspension, and most electrical components are identical. The differences are limited to the fairing assembly, headlight (round on naked, integrated in fairing on S), handlebars (wider on naked, clip-ons on S), and associated mounting brackets. If sourcing mechanical or engine parts, either variant works as a donor.
