Sun Coast Cycle Sports stocks inspected used parts for the Suzuki TL1000S (1997-2001) and TL1000R (1998-2003), Suzuki's V-twin sportbike response to the dominant Ducati 916 family. Both models share a 996cc liquid-cooled 90-degree L-twin (technically L-twin, not V-twin, due to Suzuki's cylinder arrangement) with DOHC, 8 valves, and fuel injection. The TL1000S is an unfaired sport-standard producing approximately 125 horsepower, while the TL1000R is a fully faired homologation sportbike producing approximately 135 horsepower. Both models use Suzuki's controversial rotary rear damper, a unique suspension design that separates the spring and damper functions. These are now affordable V-twin sportbikes with strong engines and a devoted aftermarket community. Each TL component at Sun Coast is inspected by our powersports team, given a unique SKU, and ships from Odessa, Florida.
TL1000 R/S generation and parts compatibility
| Model | Years | Engine | Key specifications |
|---|
| TL1000S | 1997-2001 | 996cc 90-degree L-twin | Sport-standard, half-fairing, rotary damper, USD forks, FI, steering damper added 1998+ |
| TL1000R | 1998-2003 | 996cc 90-degree L-twin | Full-fairing sportbike, revised rotary damper with temp compensation, higher compression |

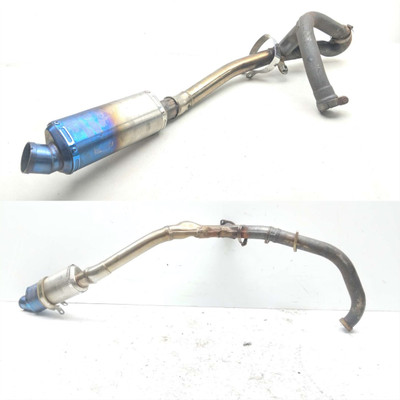

The TL1000S and TL1000R share the same 996cc engine architecture but with significant differences in tune. The TL1000R uses higher compression (11.7:1 vs 11.3:1), different cam profiles, revised fuel injection mapping, and a different exhaust system to produce approximately 10 more horsepower. The engine cases, crankshaft, and many deep internals are shared, but the heads, cams, pistons (different compression), and fuel injection calibration are model-specific. The TL1000R also uses a revised rotary damper with an automatic temperature compensation system and relocated mounting for cooler operation.

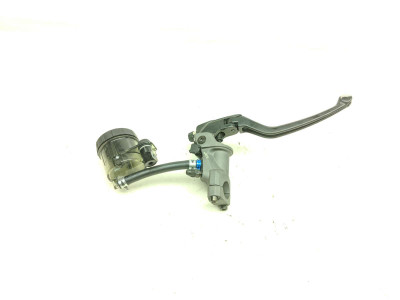

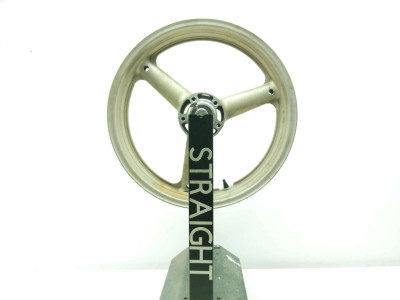

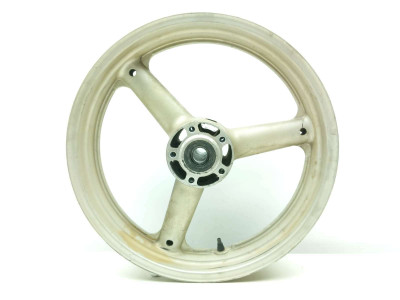

Frame and bodywork are NOT interchangeable between the S and R. The TL1000S uses a half-faired layout with a different subframe and riding position, while the TL1000R has a full-fairing design with clip-on handlebars and a more aggressive rider triangle. Forks, wheels, and front brake components are shared between the S and R. The TL1000 engine is unrelated to the SV650/SV1000 V-twin family despite all being Suzuki V-twins. The SV uses a different 90-degree twin architecture with DOHC on the SV1000 but with no parts commonality with the TL.
Common TL1000 R/S failure points and replacement parts
Rotary rear damper deterioration: The TL's most notorious feature is its rotary rear damper, which separates the spring (right side) from the damper (left side). The rotary damper can develop oil leaks and fade under hard use, particularly on the TL1000S where the damper is mounted closer to the exhaust heat. On any TL over 20 years old, the rotary damper's seals and oil have likely deteriorated. OEM replacement rotary dampers are no longer available from Suzuki. The most common solution is converting to a conventional shock absorber using aftermarket brackets that accept an Ohlins, Penske, or Yamaha R1/R6 shock.
Steering head frame cracking (1997 TL1000S): The first-year 1997 TL1000S was documented with cracking in the steering head area of the frame. This was not an official recall but is a well-known issue in the TL community. Suzuki addressed this in 1998+ production. Inspect any 1997 TL1000S frame carefully for cracks near the steering head bearings before purchasing.

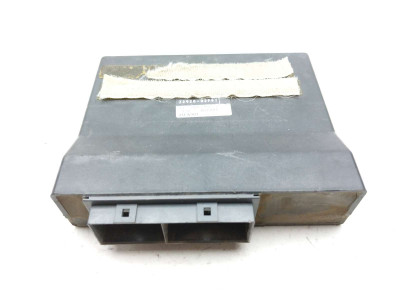

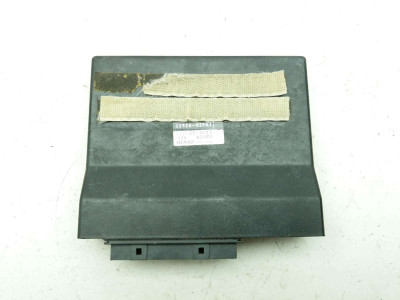

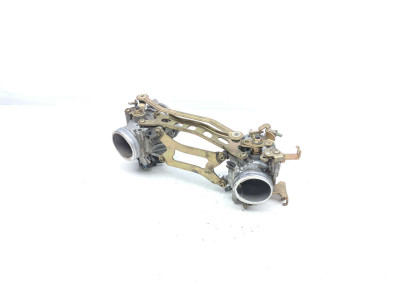

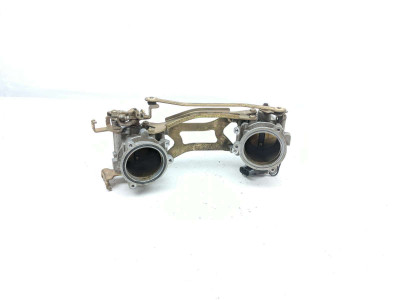

Fuel injection lean stumble: Both TL models used first-generation Suzuki fuel injection that produces a noticeable lean stumble in the 3,000-4,000 RPM range. The throttle position sensor (TPS) is extremely sensitive to calibration, and even small deviations from the correct setting exacerbate the stumble. A Power Commander or ECU remap paired with precise TPS calibration significantly improves low-RPM drivability. The TL1000R also has factory timing retard in the lower gears that a Timing Retard Eliminator (TRE) can bypass.
Clutch cover oil leak (1997 TL1000S): Early TL1000S models had a tendency for the clutch cover gasket to weep oil. A recall addressed this on 1997 models. Verify the recall was completed, or inspect for oil residue around the clutch cover seam.
Fuel tank leak (1997 TL1000S): Some 1997 models also experienced fuel tank seepage, addressed by recall. Again, primarily a first-year issue that was resolved in subsequent production.
Rear seat cowl mounting: The TL1000R's rear seat cowl uses a mounting system that is prone to failure, allowing the cowl to detach at speed. Verify mounting hardware integrity and consider aftermarket reinforcement clips.
Commonly replaced TL1000 R/S parts
- Rotary damper conversion to conventional shock
- Steering damper (essential on TL1000S)
- Fuel injection controller (Power Commander or similar)
- Timing Retard Eliminator (TRE, for TL1000R)
- Clutch plates and springs
- Regulator/rectifier
- Fork seals (USD)
- Fairings and bodywork
- Throttle position sensor
Frequently asked questions
Q: Will TL1000S and TL1000R engine parts interchange
The engine cases, crankshaft, and many deep internals are shared between the S and R. However, the R uses higher-compression pistons, different cams, and a different exhaust system, so these components are model-specific. Transmission and clutch components are shared. If sourcing engine parts, either TL model can serve as a donor for internal components, but verify that the specific part (particularly heads, cams, pistons) matches the correct S or R specification.
Q: Can the rotary damper be replaced with a conventional shock
Yes, and this is one of the most common modifications on both TL models. Aftermarket conversion brackets allow mounting a conventional mono-shock (Ohlins, Penske, or compatible units from the Yamaha R1 or R6) in place of the rotary damper system. The conversion typically requires the bracket kit and a shock specified for the TL's spring rate and damping requirements. OEM rotary dampers are no longer available from Suzuki, making the conventional shock conversion not just a performance upgrade but often a necessity.
Q: Do TL1000 and SV1000 engine parts interchange
No. Despite both being Suzuki 90-degree V-twins of similar displacement, the TL1000 (996cc) and SV1000 (996cc) use completely different engine architectures. The TL uses a different bore/stroke, head design, fuel injection system, and engine mounting arrangement. There is no meaningful engine parts crossover between the two platforms. The SV1000 was designed as a budget-friendly successor concept but is mechanically distinct.
