Sun Coast Cycle Sports stocks inspected used parts for the first-generation Suzuki DL650 V-Strom, produced from 2004 through 2011. Also known as the "Wee-Strom," the DL650 uses a 645cc liquid-cooled 90-degree V-twin derived from the SV650 engine, retuned for adventure-touring duty with emphasis on low-RPM torque and fuel efficiency. The Gen 1 DL650 pairs this engine with a steel frame, 19-inch front wheel, long-travel suspension, and upright riding position. ABS-equipped models carry the DL650A designation. Producing approximately 67 horsepower, the DL650 became one of Suzuki's best-selling models worldwide. Each V-Strom component at Sun Coast is inspected by our powersports technicians, given a unique SKU, and ships from our Odessa, Florida facility.
DL650 Gen 1 generation and parts compatibility
| Sub-period | Years | Engine | Key specifications |
|---|
| Early Gen 1 | 2004-2007 | 645cc V-twin, FI | SV650-derived engine, 19-inch front, steel frame, no ABS option initially |
| Late Gen 1 | 2008-2011 | 645cc V-twin, FI | 400W charging system (up from 350W), ABS option (DL650A), revised ECU |

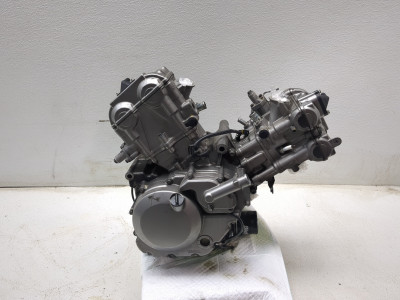

The DL650 Gen 1 shares its 645cc V-twin engine with the SV650 Gen 2 (2003-2009) and the SVF650 Gladius (2009-2015). Engine internals interchange across these three models. The DL650 uses different fuel injection mapping, exhaust routing, and airbox configuration than the SV650, so external engine components are DL650-specific. The frame, bodywork, suspension, and wheels are unique to the V-Strom and do not fit any SV model.
Within the Gen 1 DL650 range, most parts interchange freely. The 2008 update brought a higher-output 400W charging system (up from 350W), a revised ECU, and the availability of ABS. Stators and R/R units from the 2004-2007 and 2008-2011 sub-periods may differ in output rating, so charging system components should match the sub-period. The Gen 1 does NOT share bodywork or frame with the Gen 2 DL650 (2012-2016), which received restyled bodywork, a new frame, and updated electronics.
Common DL650 Gen 1 failure points and replacement parts
Stator failure (especially 2008-2011): Stator failure is the most well-documented electrical issue on the DL650 Gen 1. The 2008+ models with the higher-output 400W system are particularly susceptible. Symptoms include progressively lower charging voltage, charred stator windings visible when the left engine cover is removed, and eventually complete charging failure. The stock shunt-type R/R contributes to the problem by dumping excess current as heat back through the stator. Upgrading to a MOSFET series-type R/R reduces stator heat loading and extends stator life significantly.
Regulator/rectifier failure: The stock R/R can fail, causing overcharging or undercharging. A recall was issued covering certain 2008-2010 DL1000 and later DL650 model years for an R/R defect where moisture absorption during storage could cause the circuit board to deform, leading to uncontrolled output. MOSFET series-type R/R replacements are the recommended upgrade for any Gen 1 DL650, both for direct reliability improvement and to protect the stator from heat damage.
TPS calibration drift: The throttle position sensor can drift out of calibration over time, causing rough idle, hesitation at small throttle openings, and inconsistent fueling. Recalibration using dealer diagnostic tools or aftermarket methods restores smooth operation.
Rear shock fade: The stock rear shock is adequate for solo commuting but fades under loaded touring conditions or with a pillion and luggage. An aftermarket shock from Ohlins, Cogent, or similar adventure-touring specialists is one of the most impactful upgrades for riders who tour with the DL650.
Side stand switch intermittent failure: The side stand safety switch can develop intermittent contact, causing the engine to cut out unexpectedly when the switch fails to register that the stand is retracted. Cleaning the switch or installing a bypass eliminates this nuisance failure.
Commonly replaced DL650 Gen 1 parts
- Stator (high-failure item, especially 2008+)
- Regulator/rectifier (MOSFET series-type upgrade)
- Rear shock absorber

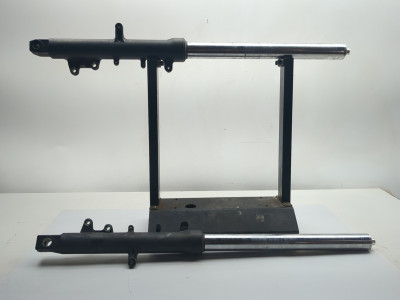

- Fork seals
- Chain and sprocket set
- Brake pads
- Side stand switch
- Windscreen (upgrade for touring)
- Clutch cable and plates
Frequently asked questions
Q: Will SV650 engine parts fit a DL650 V-Strom
The DL650 shares its 645cc V-twin engine with the SV650 Gen 2 (2003-2009) and SVF650 Gladius (2009-2015). Engine internals interchange across these three platforms. External engine components (exhaust, airbox, fuel injection mapping, engine mounts) are DL650-specific due to the different frame and bodywork. For engine rebuilds or internal component replacement, any of these three models can serve as a parts donor.
Q: Do 2004-2007 and 2008-2011 DL650 parts interchange
Most parts interchange across the full Gen 1 range. The key exception is the charging system: the 2008+ models use a higher-output 400W stator and a different R/R than the 2004-2007 models with their 350W system. Mixing charging system components between the two sub-periods can cause compatibility issues. Bodywork, frame, wheels, and most chassis components are shared throughout.
Q: Will Gen 2 (2012-2016) DL650 parts fit a Gen 1
No for bodywork, frame, and most external components. The Gen 2 received restyled bodywork, a new frame, and updated electronics. Engine internals may share specifications since both generations use the same 645cc V-twin architecture, but this must be verified per part number. The Gen 2 was also subject to a separate stator recall (2012-2016 models), indicating that charging system issues persisted across generations.
Inspected by Powersports Technicians • Only One in Stock • Ships Fast from Florida
